Driving is always more fun when you've got your favourite music pumping. A 1,000 W high power amplifier delivers cleaner sound to the speakers for enhanced listening.

Automatic Thermal Control

    High temperatures can have a negative effect on amplifier components, often causing the amp to shut down until it returns to a cooler temperature. Automatic Thermal Control lowers the amp's output, so you won't ever need to worry about the amp suddenly cutting out.

Stay cool

    The amp’s design maximises air circulation within the unit, allowing it to remain cool while reproducing stable, powerful sound that’s free from distortion.

High quality components

    You deserve to hear your favourite tracks reproduced in outstanding sound quality. The Stereo Power Amplifier utilises high quality audio capacitors, output transistors, and choke coils to ensure true, reliable sound reproduction.

Low Pass Filter (LPF)

    Music sounds better when the correct frequencies are channelled to the right parts of your speakers. The built-in LPF ensures that only deep bass sounds are directed to your subwoofer.

High Pass Filter (HPF)

    Like the Low Pass Filter, the HPF ensures that everything but the deepest bass notes are directed to your full-range speakers.

Flexible installation

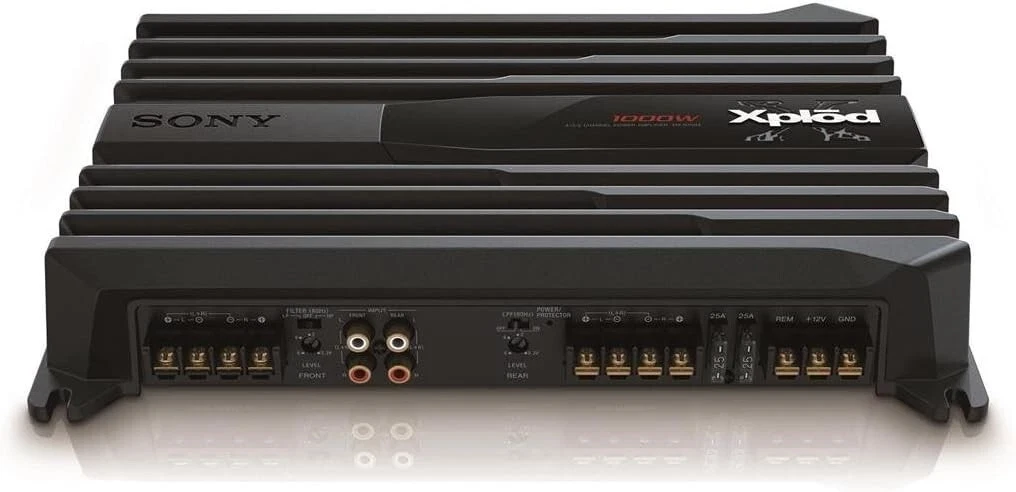

    Single sided connections give you multiple mounting options.

Specifications:

1. Channel Configuration: 4ch;3ch;2ch
2. Channel Configuration at 4 ohm (W) / THD (%): 70 W x 4 / 1.0%
3. Channel Configuration at 2 ohm (W) / THD (%): 85 W x 4 / 1.0%
4. Max. Channel Power Configuration at 4 ohm: 4 x 170 W
5. Max. Channel Configuration at 4 ohms BTL (Bridge-Tied Load): 2 x 500 W
6. Max. Channel Power Configuration at 2 ohms: 4 x 250 W
7. Frequency response: 5–50 kHz
8. High Pass Filter: 80 Hz
9. High Pass Filter Slope: 12 dB/oct
10. Low Pass Filter: 80 Hz
11. Low-Pass Filter Slope: 18 dB/oct
12. Tolerance: +0/-3 dB
13. Signal to Noise Ratio: 100 dB
14. Total Harmonic Distortion at 1 kHz (%): 0.05
15. CTA Power Output: 70 W x 4
16. CTA SN Ratio: 93 dBA
17. MOSFET: YES
18. Subsonic High Pass Filter: 12 dB/oct
19. Speaker Level Input: YES
20. Line In: Input Sensitivity: 0.3-6
21. Gold Plated Connectors: YES
22. Current drain (A) - rated output power at 4 ohms: 36
23. Weight: 2.7 kg

What's in the BOX

1. 1* Amplifier
2. 1* High Input Cable
3. 2* 30amp Fuse (Installed)
4. 1* Warranty Card
5. 1* Instruction Manual
