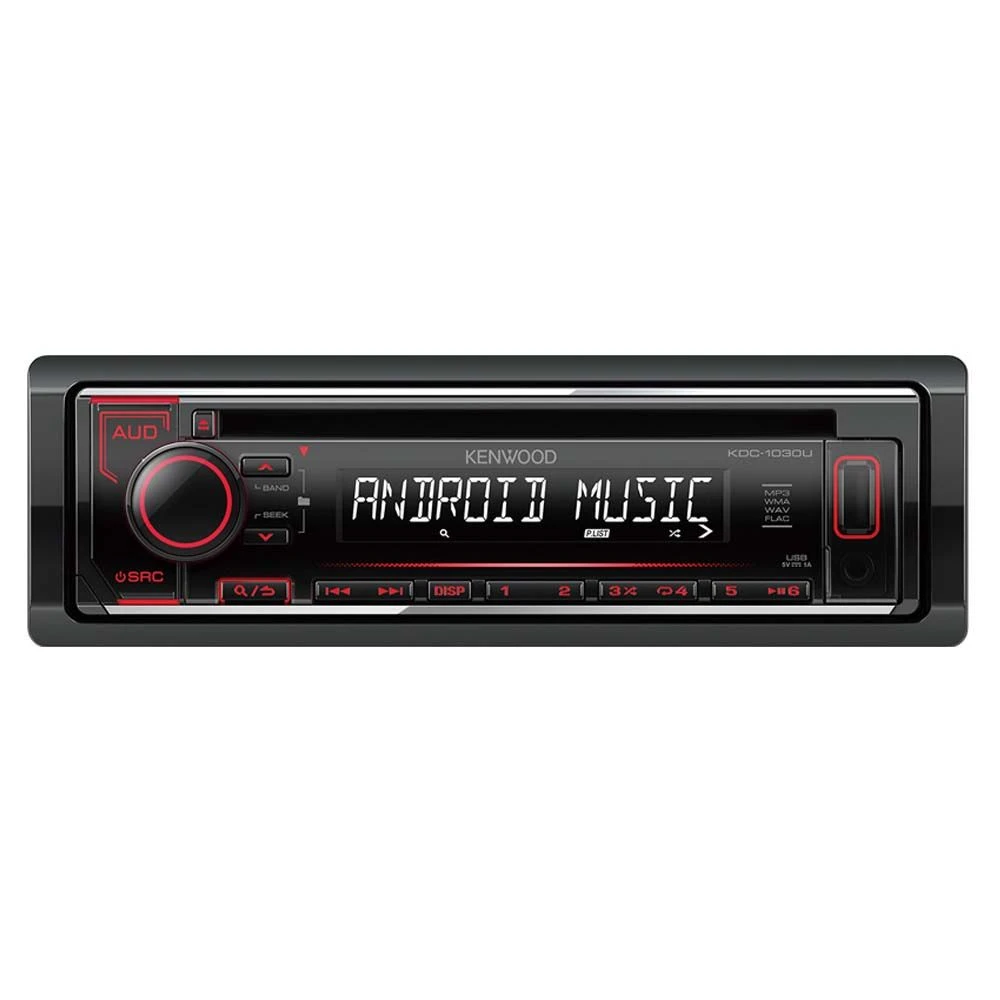

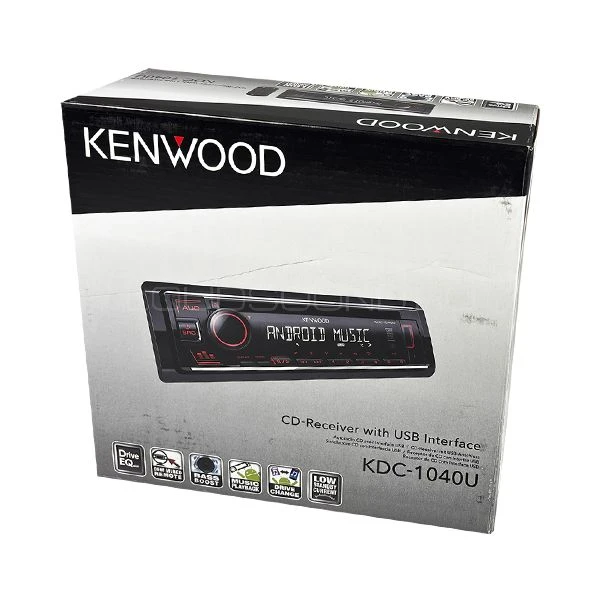

With the Kenwood USB CD Receiver – KDC 1040U you can play back from USB devices audio files compressed in various formats. Direct audio control button allows you to access quickly to the sound tuning menu and Vertical Alignment LCD display secures higher visibility during day-time drive.

SPECIFICATIONS:

1. USB Port: USB Type A
2. Disc Playback: USB & Memory Card
3. Remote Control: Yes
4. Aux Input: Yes
5. Type: Digital Media Receiver
6. Model Number: KDC 1030U
7. Microphone Included: No
8. Bluetooth: Yes
9. Detachable Face: No
10. FM: Frequency Range (Frequency step): 87.5MHz – 108.0MHz (50kHz)
11. Usable Sensitivity S/N 30dB, Deviation: 22.5kHz 8.2dBf (0.71μV/75Ω）
12. Quieting Sensitivity S/N 46dB, Deviation: 40kHz 17.2dBf (2.0μV/75Ω）
13. Frequency Response (±3.0dB): 30Hz-15kHz
14. S/N: 64.0dB(MONO)
15. Stereo Separation: 40dB(1kHz)
16. AM: Frequency Range (Frequency step): Band 1(MW) / 531kHz – 1602Hz(9kHz), Band 2(SW1) / 2940kHz – 7735kHz(5kHz)
17. Band 3(SW2) / 9500kHz – 10135kHz / 11580kHz – 18135kHz (5kHz)
18. Channel Space Selection: Band 1 / 9kHz, Band 2/3 / 5kHz
19. Usable Sensitivity S/N: 20dB 29dBμ(28.2μv): MW
20. 30dBμ (32μv): SW
21. CD Laser Diode: GaAlAs
22. Digital Filter(D/A): 8 Times OverSampling
23. Spindle Speed: 500~200rpm (CLV)
24. Wow & Flutter: Below Mesurable Limit
25. Frequency Response: 20Hz-20kHz(±1dB)
26. Total Harmonic Distortion: 0.01%(1kHz)
27. S/N Ratio (dB): 105dB(1kHz)
28. Dynamic Range: 90dB
29. Channel Separation: 85dB
30. MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
31. WMA Decode: Compliant with WINDOWS MEDIA AUDIO
32. Preout Level(mV)/Load Unbalanced: 2500mV/10kΩ(CD)
33. Preout Impedance(Ω): ≦600Ω
34. Speaker Impedance(Ω): 4-8Ω
35. USB: USB 1.1 / 2.0 Full Speed
36. File System FAT12 / 16 / 32
37. Maximum Supply current DC5V(DC logo): 1A
38. MP3 decode: Compliant with MPEG-1/2 Audio Layer-3
39. WMA decode: Compliant with Windows Media Audio
40. WAV Decode: Linear-PCM
41. FLAC Decode: FLAC file (Up to 48kHz/16bit)
42. Input Frequency Response: 20~20kHz ±3dB
43. Input Maximum Voltage: 1000mV
44. Input Impedance: 30kΩ
45. AMP Maximum Power: 50wx4
46. Full Bandwidth Power (at less than 1%THD): 22wx4
47. Tone Bass: 100Hz ±8dB
48. Middle: 1kHz ±8dB
49. Treble: 12.5kHz ±8dB
50. Operating voltage: 14.4V
51. Maximum Current Consumption: 10A
52. Operational Temperature Range: -10°C to +60°C
53. Dimensions: 182 x 53 x 158 mm
54. Weight: 1.2 kg
55. Details: Direct audio control button allows you to access quickly to the sound tuning menu
56. Vertical Alignment LCD display secures higher visibility during day-time drive
